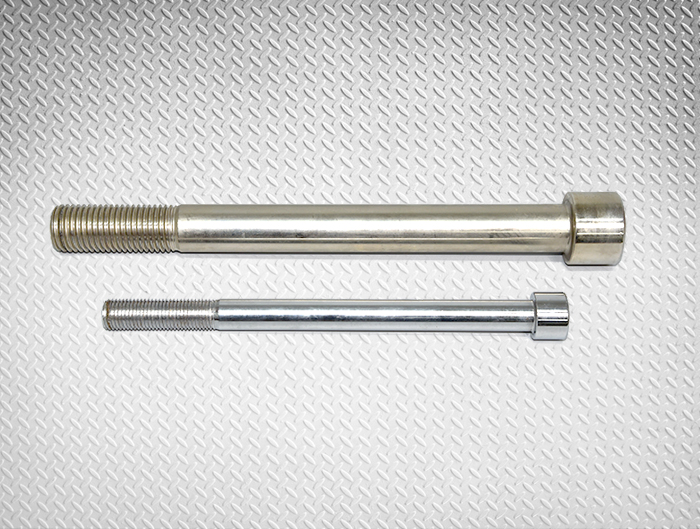

Nickel plated, chrome plated hexagon socket head cap screws

Applications

Hexagon socket head cap screws are usually used on machinery, most of which are used for screwing to the internal parts of the parts, hexagon is easy to fasten, disassemble, not easy to slip angle.Applicable for frequent disassembly, or space restricted places.

Basic parameters

●　Material: carbon steel alloy steel ●　Specifications: M10-M100 (/ 3/8 & Prime; -4 & Prime;) ●　Length: 20mm ~ 1500mm ●　Grade: ●　Steel ISO 898: 8.8 to 12.9; ASTM A574, A574M8 ●　Surface: black, galvanized, hot-dip galvanized, Dacromet, Teflon and so on

Type size and mark example

The type of manufacture allowed The top and bottom edges of the head

Dimensional inspection

Dimensions of hexagon gauges

8.8 and 10.9 within the hexagonal gauge size(mm) Nominal hexagonal specifications(s) 1.5 2 2.5 3 4 5 6 General regulations Width of edge A max 1.523 2.023 2.525 3.025 4.025 5.025 6.025 min 1.520 2.020 2.520 3.020 4.020 5.020 6.020 Diagonal width B max 1.730 2.300 2.870 3.440 4.580 5.720 6.860 min 1.725 2.295 2.865 3.435 4.575 5.715 6.855 Length C min 5 5 7 7 7 7 8 Effective length of the gauge L1/L2 5/3.5 5/3.5 7/5 7/5 7/5 7/5 12/8 General regulations Width of edge X max 1.545 2.060 2.580 3.080 4.095 5.140 6.140 min 1.543 2.058 2.575 3.075 4.090 5.135 6.135 Thickness Y max - - - - 1.80 2.30 2.80 min - - - - 1.75 2.25 2.75 Diagonal width Z max 1.68 2.23 2.79 3.35 - - - min min 1.66 2.21 2.77 3.33 - - -

Nominal hexagonal specifications(s) 8 10 12 14 17 19 22 General regulations Width of edge A max 8.030 10.030 12.037 14.037 17.055 19.070 22.070 min 8.025 10.025 12.032 14.032 17.050 19.065 22.065 Diagonal width B max 9.150 11.430 13.720 16.000 19.440 21.730 25.150 min 9.145 11.425 13.715 15.995 19.435 21.725 25.145 Length C min 8 12 12 12 19 19 22 Effective length of the gauge L1/L2 16/11 20/14 24/16 28/19 34/24 38/26 44/31 General regulations Width of edge X max 8.175 10.175 12.212 14.212 17.230 19.275 22.275 min 8.170 10.170 12.207 14.207 17.225 19.270 22.270 Thickness Y max 3.80 4.80 5.75 6.75 8.10 9.10 10.50 min 3.75 4.75 5.70 6.70 8.05 9.05 10.45 Diagonal width Z max - - - - - - - min min - - - - - - -

Dimensions of 12.9 grade hexagon gauges(mm) Nominal hexagonal specifications (s) 1.5 2 2.5 3 4 5 6 General regulations Width of edge A max 1.523 2.023 2.525 3.025 4.025 5.025 6.025 min 1.520 2.020 2.520 3.020 4.020 5.020 6.020 Diagonal width B max 1.730 2.300 2.870 3.440 4.580 5.720 6.860 min 1.725 2.295 2.865 3.435 4.575 5.715 6.855 Length C min 5 5 7 7 7 7 8 Effective length of the gauge L1/L2 5/3.5 5/3.5 7/5 7/5 7/5 7/5 12/8 General regulations Width of edge X max 1.545 2.045 2.560 3.071 4.084 5.084 6.095 min 1.543 2.043 2.555 3.066 4.079 5.079 6.090 Thickness Y max - - - - 1.80 2.30 2.80 min - - - - 1.75 2.25 2.75 Diagonal width Z max 1.68 2.23 2.79 3.35 - - - min min 1.66 2.21 2.77 3.33 - - -

Nominal hexagonal specifications (s) 8 10 12 14 17 19 22 General regulations Width of edge A max 8.030 10.030 12.037 14.037 17.055 19.070 22.070 min 8.025 2.020 2.520 3.020 4.020 5.020 6.020 Diagonal width B max 9.150 2.300 2.870 3.440 4.580 5.720 6.860 min 9.145 2.295 2.865 3.435 4.575 5.715 6.855 Length C min 8 12 12 12 19 19 22 Effective length of the gauge L1/L2　　　　min 16/11 20/14 24/16 28/19 34/24 38/26 44/31 General regulations Width of edge X max 8.115 10.115 12.142 14.142 17.230 19.275 22.275 min 8.110 10.110 12.137 14.137 17.225 19.270 22.270 Thickness Y max 3.80 4.80 5.75 6.76 8.10 9.10 10.50 min 3.75 4.75 5.70 6.70 8.05 9.05 10.45 Diagonal width Z max - - - - - - - min min - - - - - - -
